1. Introduction

After you did learn more about SPF, DKIM and DMARC in theory, please analyze different e-mail log files and answer the following questions:

1. Has opportunistic encryption being used?
2. Is the smtp communication using spf protection?
3. Is the smtp communication using dkim protection?
4. Is the smtp communication using dmarc protection?

2. Answers

For a better mail header analyses I use the following Online tool: https://mha.azurewebsites.net/

Opportunisitc encryption is being used. An inidicator for that is the STARTTLS we can see in the wireshark log:

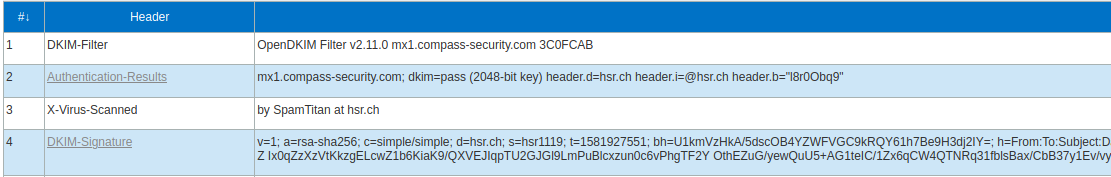

2.1 Mail from HSR to Compass

SMTP communication uses SPF protection: yes

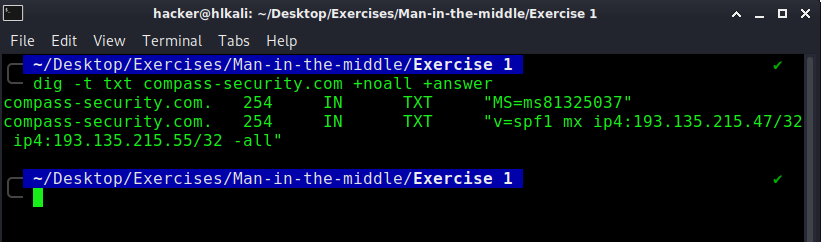

dig -t txt compass-security.com +noall +anser

SMTP communication uses DKIM protection: yes

SMTP communication uses DMARC protection: no

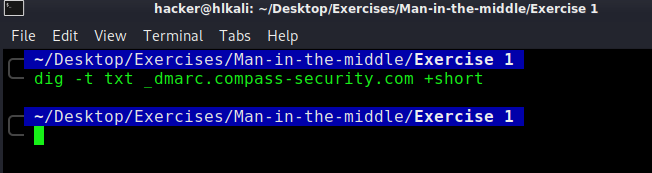

dig -t txt _dmarc.compass-security.com +short

2.2 Mail from HL to Compass

SMTP communication uses SPF protection: yes

SMTP communication uses DKIM protection: yes

SMTP communnication uses DMARC protection: no

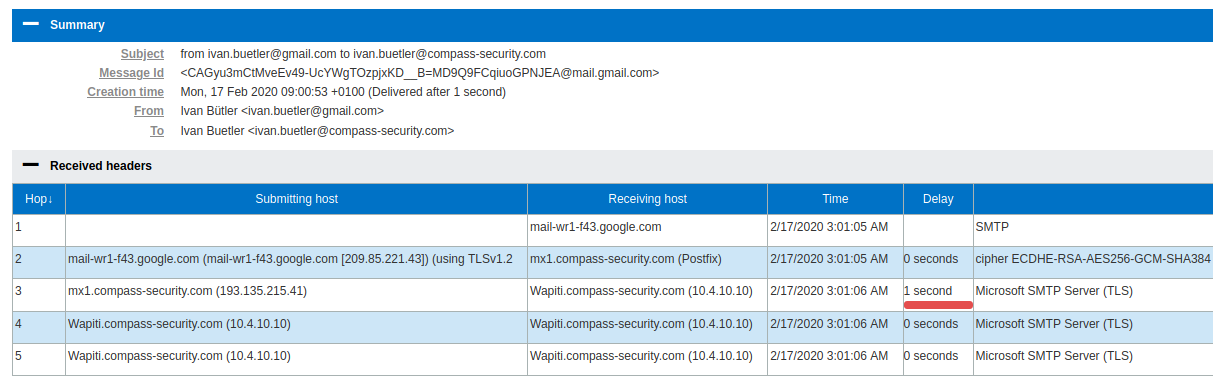

2.3 Mail from gmail to Compass

SMTP communication uses SPF protection: yes

SMTP communication uses DKIM protection: yes

SMTP communnication uses DMARC protection:no

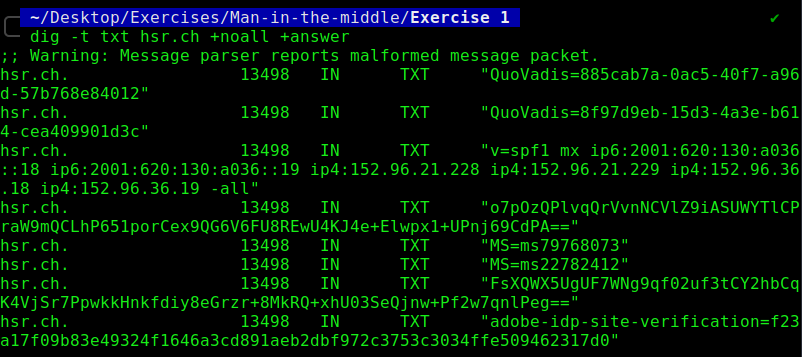

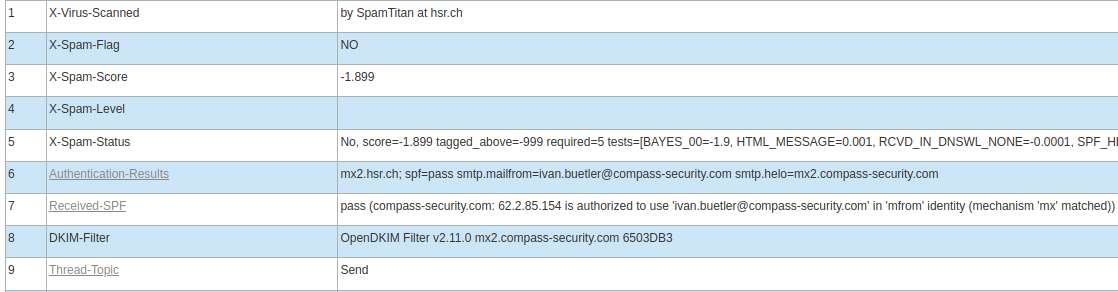

2.4 Mail from compass to hsr

SMTP communication uses SPF protection: yes

SMTP Communication uses DKIM protection: no (No DKIM signature?)

SMTP Communication uses DMARC protection: no

3. Summary

Sender	Recipient	SSL protection between sender and receiver	DKIM enabled	SPF enabled	DMARC enabled
Compass Security	HSR	yes	no	yes	no
GMAIL	Compass Security	yes	yes	yes	yes
Hackinglab	Compass Security	no	yes	yes	yes
HSR	Compass Security	yes	yes	yes	no

PDF Report:
spam_protection#2
